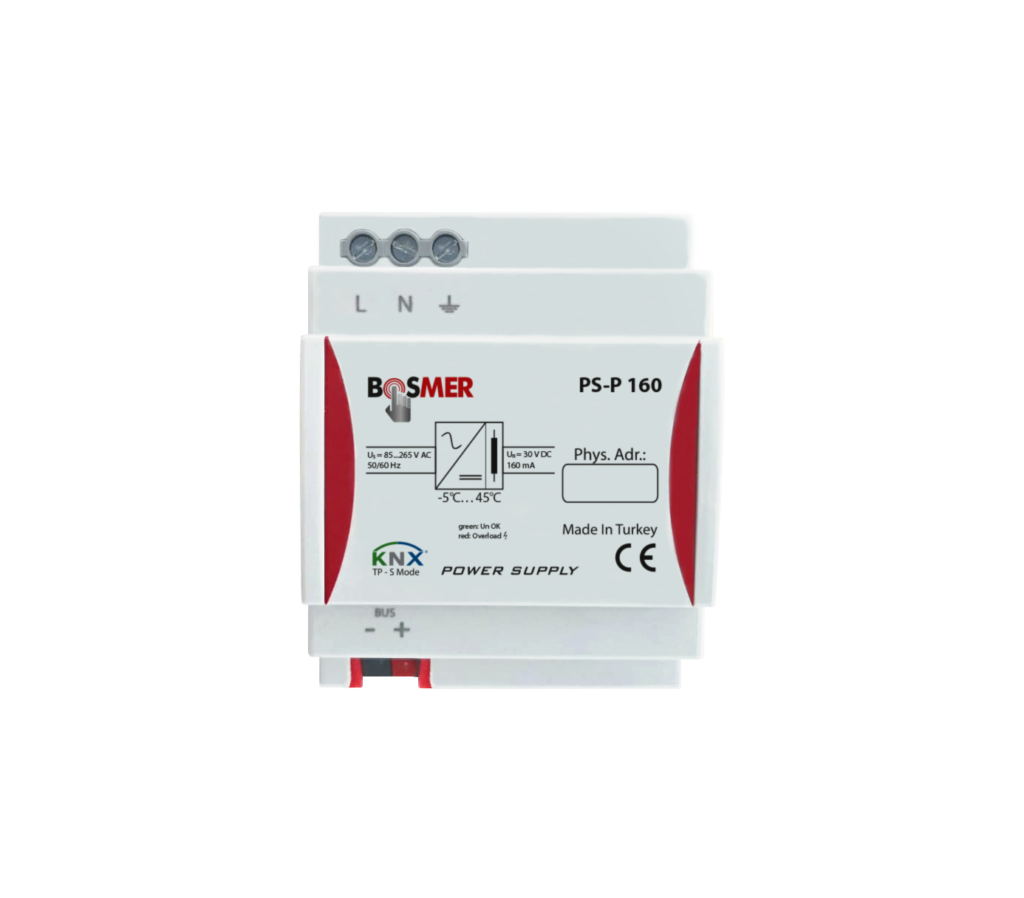

PSP 160/320/640 is a device developed for building automation technology and can be easily developed in accordance to the needs.
PSP 160/320/640 KNX Power supplies generates voltage for the KNX system infrastructure. The KNX power supply provides isolated energy for each device connected to the automation line. Three different power supply models have been developed in consideration of the needs of the systems.160 mA can feed up to 16 devices, capacity of 320 mA is up to 32 devices and 640 mA is for 64 devices.
| Model | PSP 160/320/640 |
| Explanation | Power Supply Module 160mA / 320mA / 640 Up |
| Exit | KNX line supply, 30VDC (+ 1 / -2V) |
| Supply voltage | 230VAC (+/- ) |
| Operations Staff |
Green Led: Rated operating Red LED: Overload or short-circuit |
| Setup | DIN Rail Mounting (4M) |
| Temperature Range |
Study: -5C + 45C ... Storage: -20C to + 60C ... |
| Flammability | Heat resistant |
| Dimensions | 70x90x59 mm |
| Certificate | THIS |
