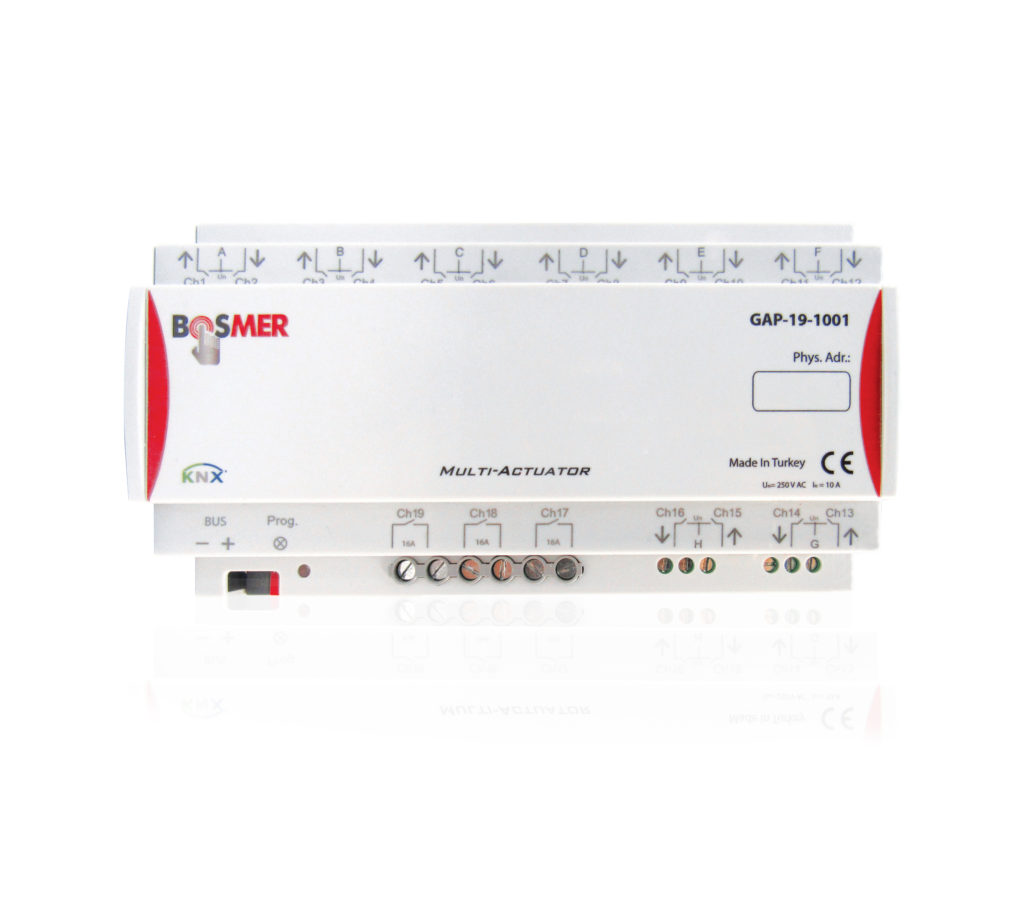

GAP 19-1001 belongs to the Gap (General switchboard device) series produced by Bosmer ,it is a device that is compatible with the KNX standard and has 19 outputs. The device is powered by the KNX BUS 30 V DC. It does not need extra power. The main task of the device is to make switching also outputs can be adjusted in the project as desired. The GAP device is designed according to different requirements such as 8 shutter controls or 19 switching. Parameters and modifications set via the ETS program.
| Device | GAP-19-1001 Multi-Actuator |
| Power Supply | KNX 30 V DC |
| instant Consumption | 12 mA |
| KNX Mode | S-Mode |
| Output Number | Channel 19 |
| Maximum voltage | 277 V AC |
| Switching Capacity | 10 A |
| Mechanical Life | 1.000.000 |
| Contact Tipi | Bistable - AgSnO2 |
| Mounting | DIN Rail Mounting |
| Operating Range | -20….+70 |
| Dimensions | 158 x 90.6 x 59 mm |
| Refractoriness | Heat resistant |
